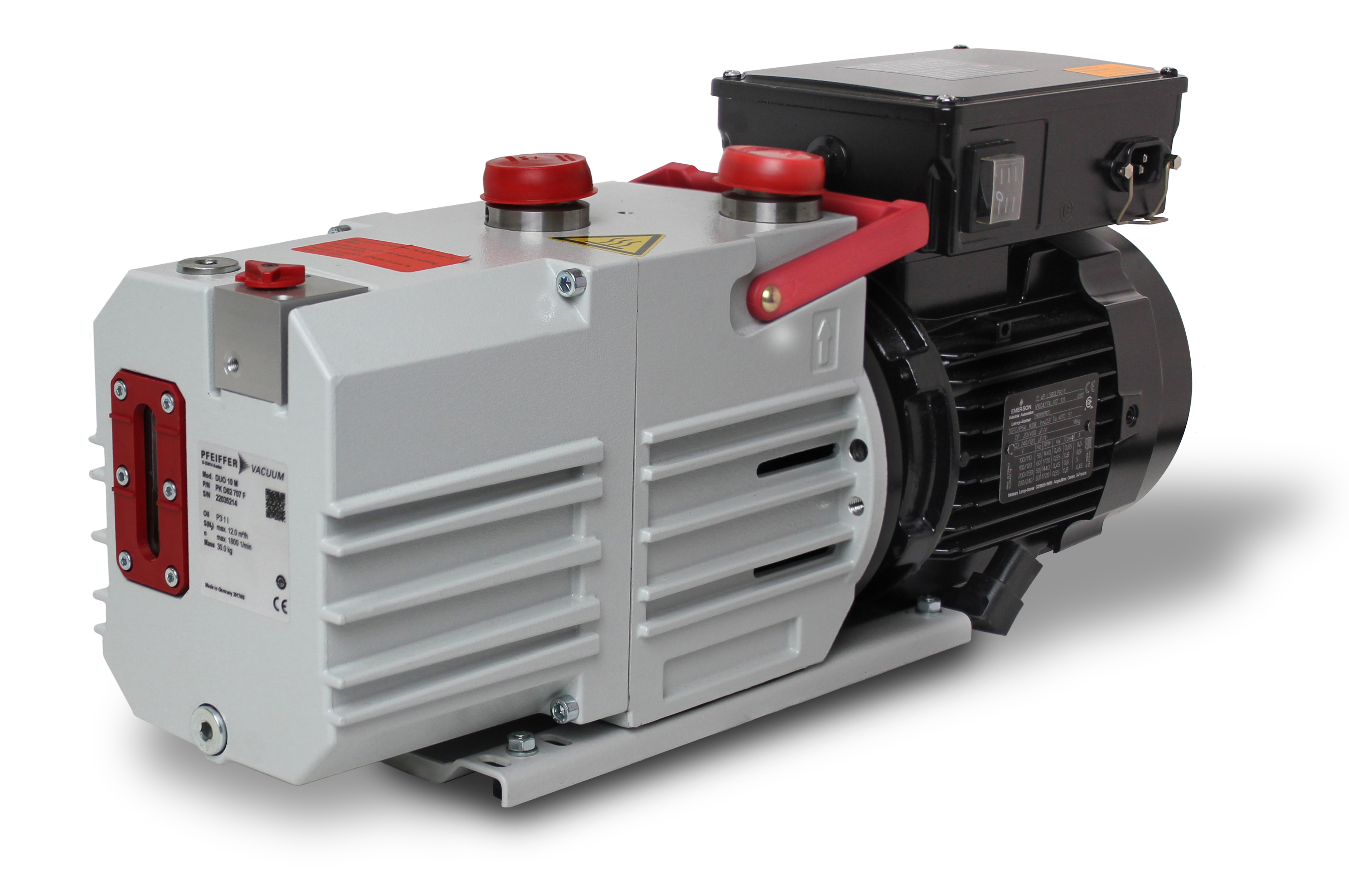

Pfeiffer DUO 10 M Vacuum Pump with Oil Mist Filter, 115 V/230 V, 50/60 Hz

Pfeiffer DUO 10 M Vacuum Pump with Oil Mist Filter, 115 V/230 V, 50/60 Hz
Pfeiffer DUO 10 M Vacuum Pump with Oil Mist Filter, 115 V/230 V, 50/60 Hz
$3,562.02
AvailabilityContact for Availability
Item10446-AB

Pfeiffer DUO 10 M Vacuum Pump with Oil Mist Filter, 100-110 V, 50 Hz; 100-120 V, 60 Hz, 1-phase motor

Includes an oil mist filter.

DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems.

The DUO 10M is suggested for use with the SPI Supplies Osmium Coater System.

Dual-stage, magnetically coupled, high-performance rotary vane pump with a pumping speed of 12 m3/h at 60Hz.

  • Pumping speed at 50 Hz 10 m3/h
  • Pumping speed at 60 Hz 12 m3/h
  • Rated power 50 Hz 0.45 kW
  • Rated power 60 Hz 0.55 kW
  • Rotation speed at 50 Hz 1,500 rpm | 1,500 min-1
  • Rotation speed at 60 Hz 1,800 rpm | 1,800 min-1
  • Ultimate pressure with gas ballast 6 · 10-3 hPa | 4.5 · 10-3 Torr | 6 · 10-3 mbar
  • Ultimate pressure without gas ballast 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar
  • Flange (in) DN 25 ISO-KF
  • Flange (out) DN 25 ISO-KF
