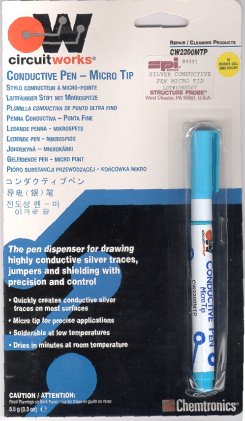

Circuitworks MicroTip Conductive Silver Pen 8.5 g Line Width 1 mm

Circuitworks MicroTip Conductive Silver Pen 8.5 g Line Width 1 mm
Circuitworks MicroTip Conductive Silver Pen 8.5 g Line Width 1 mm
Quantity Price
1 to 9 $71.40
10 to 29 $64.26
30 and up $60.69
AvailabilityIn Stock
Item04991-AB

Circuitworks® MicroTip Conductive Silver Pen 8.5g Line Width 1 mm:

This product is a compliment to our long time product, the SPI Silver Kwik-Stik™ with the only real difference being in the much smaller width of a drawn line or a "dot". The MicroTip Conductive Silver Pen will put down the smallest "dot" possible with any of the SPI Supplies silver paint products with the possible exception of the dipping of a fine tip tooth pick into some of the SPI Supplies® Brand Silver Paint, and then just slightly "touching" the bottom of the tooth pick to the surface on which a microdot is required.



Like for the SPI Silver Kwik-Stik, the Circuitworks MicroTip Conductive Silver Paint Pen is also fast because the pen readily distributes just the right amount of paint and in an extremely thin layer and it is economical because you get just what you need, where you need it. And because the applied layer is so thin, there is virtually no "skin" effect when drying, a characteristic quite important if the final substrate is about to be placed in a high vacuum environment.

And also like the SPI Silver Kwik-Stik, the Circuitworks MicroTip Conductive Silver Paint Pen is widely used on other applications as well, such as for repairs of printed circuit boards (PCBs). Solderable terminations are obtained in about twenty minutes using a 250° F/121° C cure. This is the smallest size "dot" that can be made with any silver paint found anywhere.

Specifications:

  • Line width:   1 mm
  • Smallest dot diameter:< 1 mm
  • Conductivity:<0.1 ohms per area
