Transfer Modules



Getting your prepared samples from your preparation hood or glovebox requires the right tool to prevent exposure to the outside environment. Kammrath and Weiss offers a number of transfer modules for these tasks.

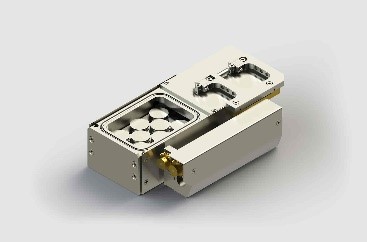

 Transfer Modules

•    System includes transfer device, control electronics with all cables and two vacuum feed-through flanges.
•    Optionally heating/cooling unit.
•    Multiple samples can be loaded.

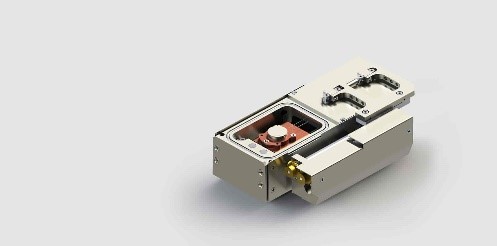

  Z-lifting Transfoduleser-M

•    System includes transfer device, control electronics with all cables and two vacuum feed-through flanges.
•    Optionally heating/cooling unit.
•    Multiple samples can be loaded.
•    Samples can be raised when the lid is open.

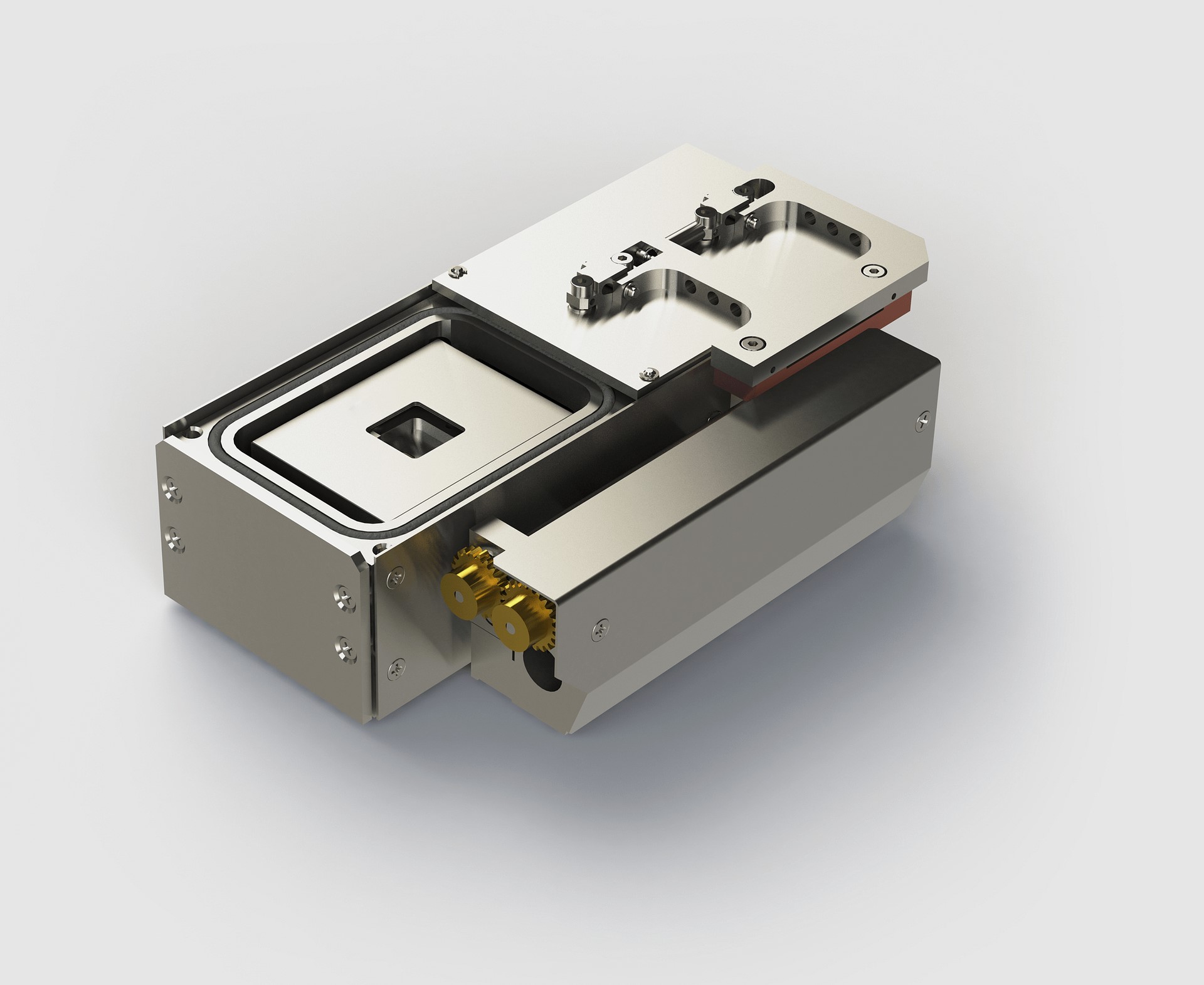

 Heating-Transfer Modules

•    Heating/cooling system for different temperature ranges can be integrated.
•    Tilting stage (angle dependent on SEM layout).
•    Holds one sample, up to 10mm x 10mm.





Cryo-transfer Modules

•    Integrated LN2 cryo unit.
•    Kammrath & Weiss “vortex funnel” design: low-vibration/minimum coolant consumption.
•    Cryostat chamber with liquid or gaseous nitrogen source.
•    Constant temperature from room temperature to 80 Kelvin.
