Temperature Modules



Kammrath and Weiss offer temperature tools for heating and cooling experiments in your SEM and other systems. We offer cryogenic and heating products for a wide range of microscopy applications. Cooling experiments in the vacuum chamber of an SEM provide diverse insights into physical or biological processes. We also offer peltier heating-cooling modules (223 K – 373K), liquid nitrogen cryostats (80K), liquid helium cryostats (5K), and the control electronics PID-control, if desired with the interface. For high-temperature testing, different heating systems are available. There are standard versions with open heating surface as well as those with a closable heating chamber and optional gas inlet and outlet.

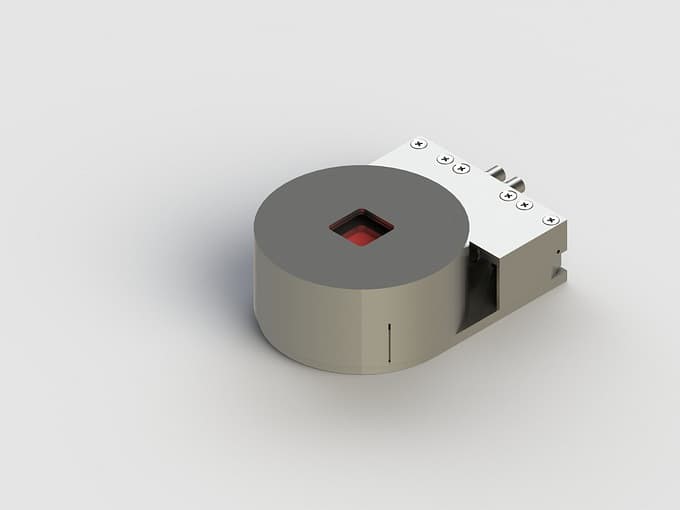

Microscopy Heating Modules

•    Substages for heating experiments.
•    System options from 300 to 1500C.
•    Open and closeable heating options.
•    Optional: EBSD compatible.

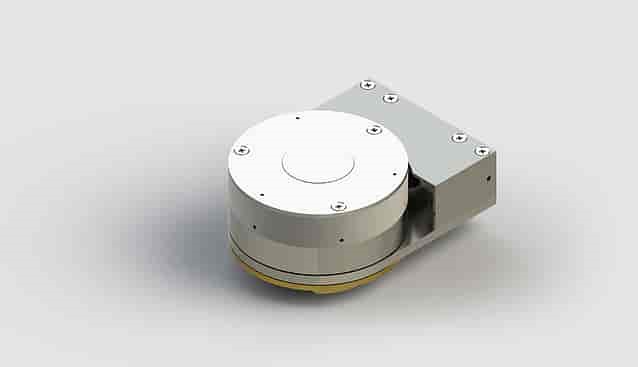

 Peltier Sample Modules

•    Heating-cooling module for the SEM.
•    Temperature range of -25 °C to +50 °C. (option: -50°C to +100°C with heating/cooling rate of 30 °C per minute!.
•    Fast temperature change by PID control.
•    Temperature accuracy of 1/10°C.

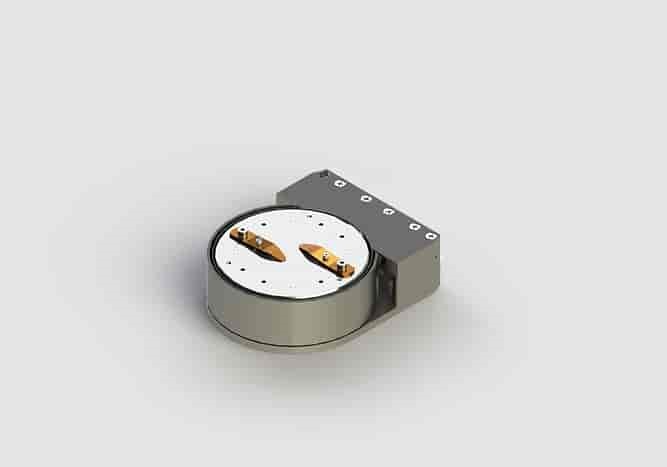

 Cryostat Substage Modules

•    Liquid nitrogen and Liquid helium systems are available.
•    LN2 down to -190C; has option for heater to 300C
•    LHe down to 5K; can be equipped with micromanipulators
