SPI Cure Embedment Heater

SPI Cure Embedment Heater, 110v
Voltage 110 v
Item17078HL-AB
AvailabilityIn Stock
On Sale
$449.51 $200.00
SPI Cure Embedment Heater, 220v
Voltage 220 v
Item17078HL-AX
AvailabilityIn Stock
On Sale
$449.51 $200.00

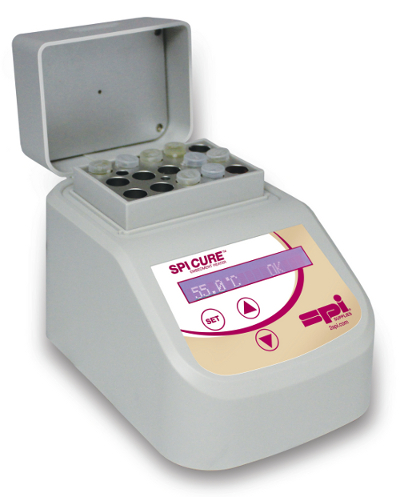

The SPI CURE™ is a dry block heater designed for the curing of various EM embedding resin systems. The unit is ideal for the preparation of small batches of plastic-/resin-embedded specimens for Electron or Light Microscopy.

The system comes with a standard aluminum heating block 1.5 snap-cap conical tubes. Using precise controlled temperatures ranges of up to 80°C, the dual heaters (upper and lower) provides a consistent temperature and provides a safe environment for the polymerization of LR White (acrylic) and SPI Pon (epoxy) resins.

SPI Sure can be used with both protected and unprotected BEEM capsules as well as 00-gelatin capsules. It is a personal sized instrument that fits in the palm of your hand. A large, backlit display is used to control temperature up to 80°C.

The SPI Cure takes the place of large ovens that tend to not provide uniform heating. The small size allows easy storage and transport, enabling the use of a fume hood if needed for a particular resin. The SPI Cure provides a ‘greener’ energy signature for this part of specimen preparation.


Features:

  • Compact, fits in the palm of your hand
  • Exchangeable blocks, for tube sizes 0.2 to 50ml
  • Clear cover ensures temperature uniformity
  • Digital Temperature Control
  • Portable (Optional 12V car adapter)
  • Convenient hinged lid

Technical Data:
Temp. Range:
Amb. +5 to 100°C
Temp. Accuracy:
+/- 0.5°C
Temp. Increments:
0.1°C
Temp. Uniformity:
+/- 0.2°C
Block Construction:
High Grade Aluminum
Dimensions:
(W x D x H)
4.6 x 4.5 in.
10.5 x 15 x 11 cm
Weight:
2 lbs (1kg)
Electrical:
(Universal)
100 to 240V 50-60 Hz, 50W
Block Dimensions:
1.85 x 2.8 x 1.25in (4.7 x 7.1 x 3.2 cm)
