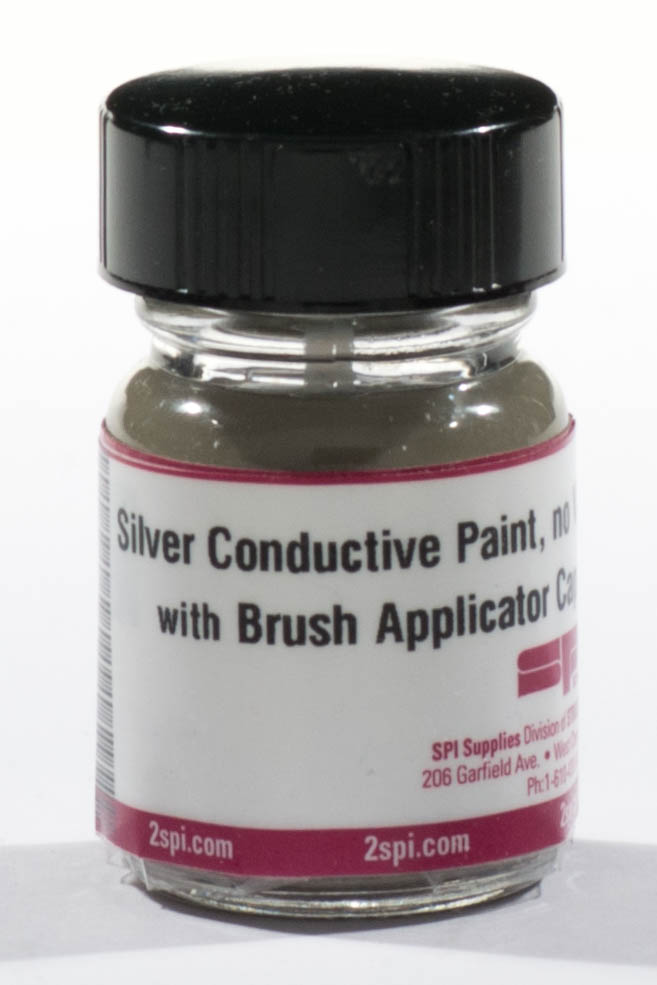

SPI Supplies NO-VOC Silver Paint with Brush Applicator Cap

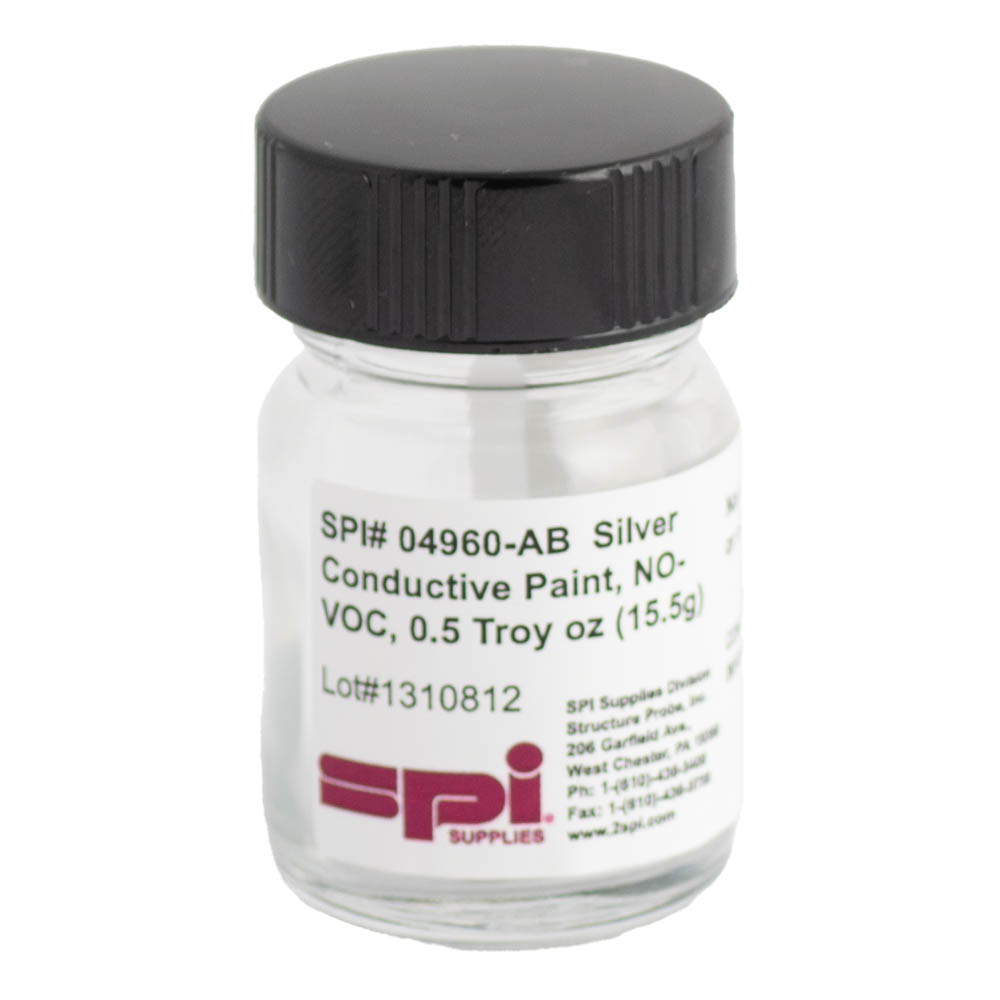

NO-VOC Silver Paint with Brush Applicator Cap, 0.5 troy oz.(15.5g)
Size 0.5 troy oz.
Item04960-AB
AvailabilityIn Stock
$50.00

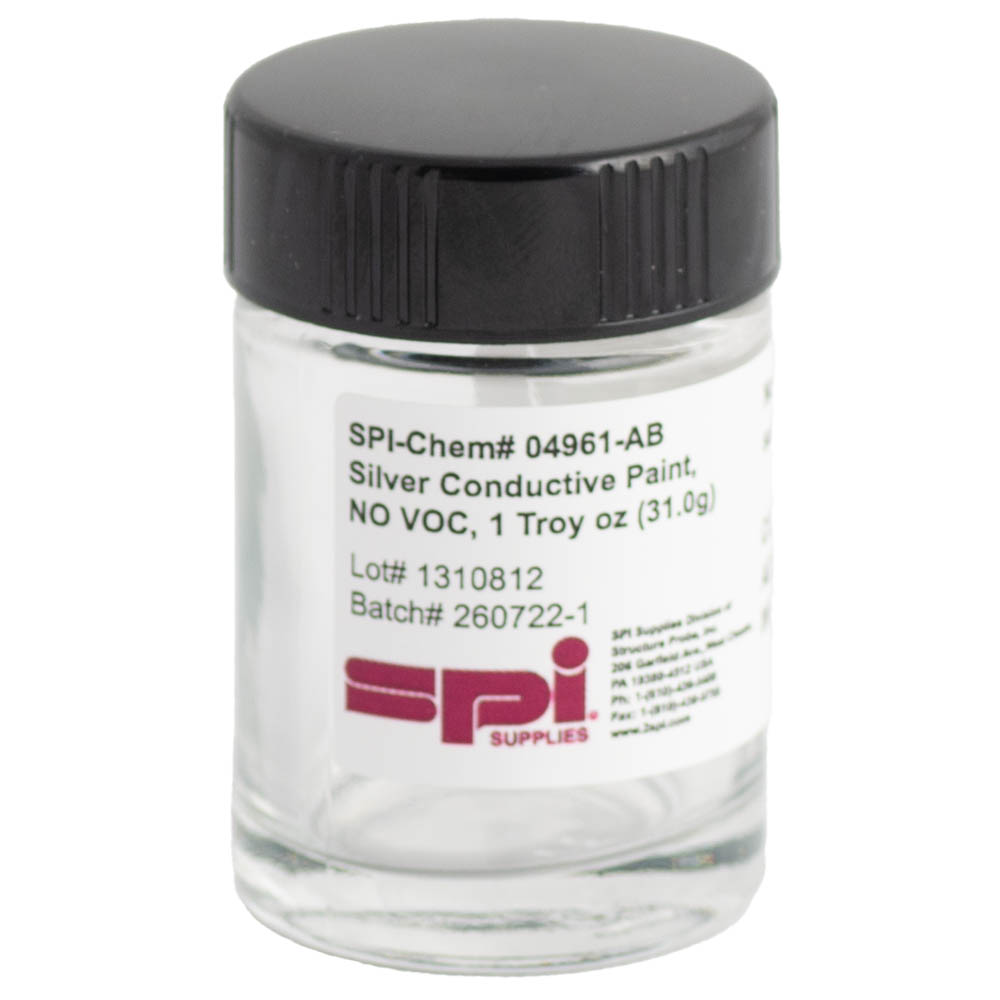

NO-VOC Silver Paint with Brush Applicator Cap, 1.0 troy oz.(31.0g)
Size 1.0 troy oz.
Item04961-AB
AvailabilityIn Stock
$75.00

After many years of research, SPI Supplies can now offer a non-Volatile Organic Content silver paint, compatible with those laboratories looking for products with no VOCs as well as a product that does not have to be shipped as a hazardous paint.

SPI Supplies NO-VOC Silver Paint is a highly conductive, 100% water-based silver paint is designed for making high-performance electrical contacts. This material is VOC free. NO-VOC Silver Paint is optimized for brushing/dipping applications. Primary applications for this material include SEM ground coatings, printed circuit board repair, electroforming, and EMI shielding. Excellent for use on plastic, wood, and ceramic substrates.

NO-VOC Silver Paint should perform much like our standard Silver Conductive Paint. It is specially formulated to resist settling of the silver solids. However, it is still suggested that the product is stirred, jar rolled, or shaken well prior to use. If the paint begins to thicken, deionized water may be added to replace water loss or to make slight adjustments for ease of application. Ultrasonic agitation is suggested to ensure that the paint is thoroughly mixed after adding deionized water.

COMPOSITION PROPERTIES:
Silver Content 40.0% +/- 2
Volume Resistivity: 0.00012 ohms-cm
Sheet Resistivity: 0.05 ohms/sq/mil
Viscosity 8-15 Kcps (Brookfield RVT, Spin #7, 20 rpm, 25 °C)
Density 1.29 g/cc
Silver Particle Size <20 microns
Cure Schedule 1-2 hours @ 25 °C or 5-10 minutes @ 60-90 °C
Operating Range: -55 °C to 140 °C
VOC:  0.0gm/l
Thinner Deionized Water
Application Temperature 65 °F (18 °C) to 78 °F (26°C)
Shelf Life Indefinite in a sealed container (See Note)



NOTE:  Water may evaporate from the product while on the shelf and maybe reconstituted using DI water.



Paint Film Removal:

Dimethyl Acetamide is suggested as a solvent for removing NO-VOC films
