Stage Micrometer, Transmitted Light, 100 Divisions, 0.001/Division [PS4]


Stage Micrometer for Transmitted Light, 100 Divisions, 0.001" per Division, UKAS Certified
Certificate UKAS
Item02298C-AB
AvailabilityItem Not Available

Stage Micrometer for Transmitted Light, 100 Divisions, 0.001" per Division, Graticules Certified
Certificate Graticules
Item02298G-AB
AvailabilityItem Not Available

Stage Micrometer for Transmitted Light, 100 Divisions, 0.001" per Division, NPL Certified
Certificate NPL
Item02298N-AB
AvailabilityItem Not Available
Stage Micrometer for Transmitted Light, 100 Divisions, 0.001" per Division, No Certificate
Certificate None
Item02298-AB
AvailabilityIn Stock
$338.82

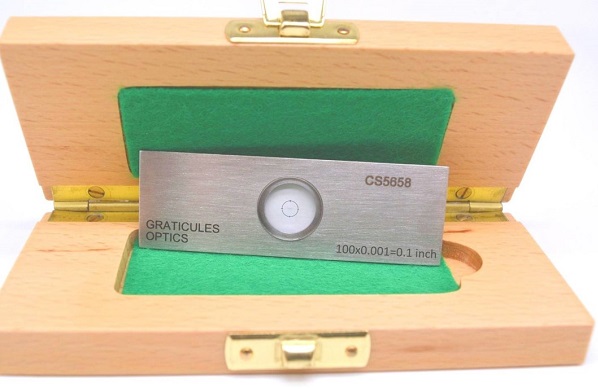

These high-quality stage micrometers are used for routine calibration of a variety of optical measuring instruments, from light microscopes and eyepieces to x-y stages and optical benches. The stage micrometer is actually used as a "specimen" in order to calibrate, for example, an eyepiece reticle. For the professional light microscope user or researcher, these are the ultimate calibration standards for their light microscopes. This means that the stage micrometers are available “certified” with either a Graticules Optics certification or with a certification through the National Physical Laboratory (NPL) or the UKAS (United Kingdom Accreditation Service). There is also a No Certificate option available.

Note that the UKAS and NPL Certified Standards are not kept in stock because their certifications expire after two years.

Why choose Graticules Optics Stage Micrometers?

All Graticules Optics Stage Micrometers come with the following specifications:

Line Thickness: 0.002mm +/-0.001mm
Glass Type and Thickness: B270 1mm thick
Scale Length Tolerance: +/-0.001mm
Mount: Stainless Steel Slide with engraved Serial Number
Divisional Marker Lengths: 0.175mm, 0.125mm, 0.075mm
Orientation: Correct on top surface

Packaged in a polished wooden box with full cushioning so as to provide the highest level of protection.
For FAQs plus additional information and tips see our brochures on stage micrometers.
