Scout 350 Silicon AFM Probes, Pk 10


Scout 350 Silicon AFM Probes, Uncoated, Pk 10
Coating Uncoated
Item01077-AB
AvailabilityContact for Availability
$365.00

Scout 350 Silicon AFM Probes, Aluminum Reflective Coating, Pk 10
Coating Aluminum
Item01075-AB
AvailabilityContact for Availability
$370.00

Scout 350 Silicon AFM Probes, Gold Reflective Coating, Pk 10
Coating Gold
Item01076-AB
AvailabilityContact for Availability
$450.00

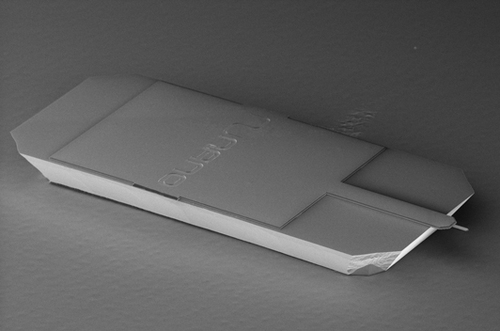

Scout Silicon AFM Probes

Reliable imaging every time. Rigorous inspection of every probe means each one performs as you expect. Pack of 10 general purpose AC mode silicon AFM probes, suitable for non-contact/tapping modes in air, on hard samples and stable softer samples.

Available:
   Uncoated.
   Aluminum backside coating.
   Gold reflective backside coating.

Nominal 5 nm tip radius.  Minimal variation in spring constant and resonant frequency.

Cantilever Specifications

Parameter Nominal Range
Spring constant (N/m) 42 25 - 70
Resonant frequency (kHz) 350 300- 400
Shape Rectangular
Length (µm)  125 123 - 127
Width (µm)  30 28 - 32
Thickness (µm)  4.5 4.0 - 5.0
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Tip Specification

Parameter Nominal Range
Radius (nm) 5 < 10
Height (µm) 7 5 - 8
Set back (µm) 7.5 6.5 - 8.5
Shape Conical
Cone Angle (°) 25 15 - 40
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Note: Nominal values for spring constants and resonant frequencies are calculated using well-known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.

Option reflective coatings:

Aluminium: Frontside/Tip - None, Backside/Reflective - 40 nm Al

Gold: Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 50 nm Au
