Scout 350 HAR Silicon AFM Probes, Pk 10


Scout 350 HAR Silicon AFM Probes, Uncoated, Pk 10
Coating Uncoated
Item01071-AB
AvailabilityContact for Availability
$1,025.00

Scout 350 HAR Silicon AFM Probes, Aluminum Reflective Coating, Pk 10
Coating Aluminum
Item01069-AB
AvailabilityContact for Availability
$1,035.00

Scout 350 HAR Silicon AFM Probes, Gold Reflective Coating, Pk 10
Coating Gold
Item01070-AB
AvailabilityContact for Availability
$1,115.00

Scout HAR Silicon AFM Probes High Aspect Ratio Probe Tips

Reliable imaging every time.  Rigorous inspection of every probe means each one performs as you expect. Pack of 10 AC mode silicon AFM probes with a high aspect ratio tip.  Ideal for deep trench imaging with non-contact/tapping modes in air, on hard samples, and stable softer samples.

Available:
   Uncoated.
   Aluminum backside coating.
   Gold reflective backside coating.

High aspect ratio: Cone angle of < 15 ° over the final 1 μm of the tip.   Minimal variation in spring constant and resonant frequency.

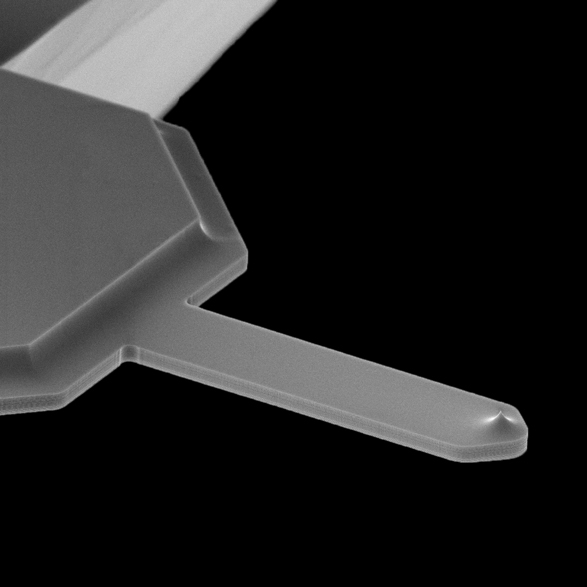

Cantilever Specifications

Parameter Nominal Range
Spring constant (N/m) 42 25 - 70
Resonant frequency (kHz) 350 300 - 400
Shape Rectangular
Length (µm)  125 123 - 127
Width (µm)  30 28 - 32
Thickness (µm)  4.5 4.0 - 5.0
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

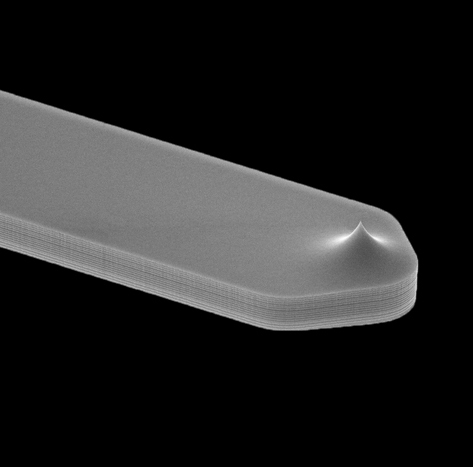

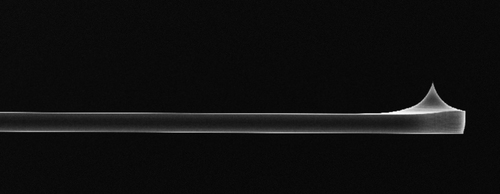

Tip Specification

Parameter Nominal Range
Radius (nm) 5 < 10
Height (µm) 7 5 - 8
Set back (µm) 7.5 6.5 - 8.5
Shape Conical
Cone Angle (°) 15° over the last 1 µm of the tip
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Note: Nominal values for spring constants and resonant frequencies are calculated using well-known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.

Option reflective coatings:

Aluminium: Frontside/Tip - None, Backside/Reflective - 40 nm Al

Gold: Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 50 nm Au
