Scout 150 HAR Silicon AFM Probes, Pk 10


Scout 150 HAR Silicon AFM Probes, Uncoated, Pk 10
Coating Uncoated
Item01068-AB
AvailabilityContact for Availability
$1,025.00

Scout 150 HAR Silicon AFM Probes, Aluminum Reflective Coated, Pk 10
Coating Aluminum
Item01066-AB
AvailabilityContact for Availability
$1,035.00

Scout 150 HAR Silicon AFM Probes, Gold Reflective Coated, Pk 10
Coating Gold
Item01067-AB
AvailabilityContact for Availability
$1,115.00

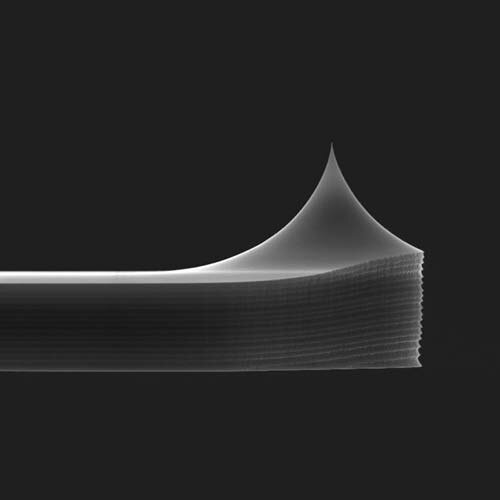

High Aspect Ratio Probe Tips

Reliable imaging every time. Rigorous inspection of every probe means each one performs as you expect. Pack of 10 general purpose AC mode silicon AFM probes with a high aspect ratio tip.  Ideal for deep trench imaging with non-contact/soft tapping and force modulation modes in air, on softer samples.

Available:
   Uncoated.
   Aluminum backside coating.
   Gold reflective backside coating.

High aspect ratio: Cone angle of < 15 ° over the final 1 μm of the tip.   Minimal variation in spring constant and resonant frequency.

Parameter Nominal Range
Spring constant (N/m) 18 10 - 26
Resonant frequency (kHz) 150 130 - 170
Shape Rectangular
Length (µm)  225 223 - 227
Width (µm)  30 29 - 31
Thickness (µm)  5.5 5.0 - 6.0
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Tip Specification

Parameter Nominal Range
Radius (nm) 5 < 10
Height (µm) 7 5 - 8
Set back (µm) 7.5 6.5 - 8.5
Shape Conical
Cone Angle (°) 15° over the last 1 µm of the tip
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Note: Nominal values for spring constants and resonant frequencies are calculated using well-known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.

Option reflective coatings:

Aluminium: Frontside/Tip - None, Backside/Reflective - 40 nm Al

Gold: Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 50 nm Au
