Scout 70 HAR Silicon AFM Probes, Pk 10


Scout 70 HAR Silicon AFM Probes - Uncoated, Pk 10
Coating Uncoated
Item01063-AB
AvailabilityContact for Availability
$1,025.00

Scout 70 HAR Silicon AFM Probes - Aluminum Reflective Coated, Pk 10
Coating Aluminum
Item01064-AB
AvailabilityContact for Availability
$1,035.00

Scout 70 HAR Silicon AFM Probes - Gold Reflective Coated, Pk 10
Coating Gold
Item01065-AB
AvailabilityContact for Availability
$1,115.00

Scout HAR Silicon AFM Probes High Aspect Ratio Probe Tips

Reliable imaging every time. Rigorous inspection of every probe means each one performs as you expect. Pack of 10 general purpose AC mode silicon AFM probes with a high aspect ratio tip.  Ideal for deep trench imaging with non-contact/soft tapping and force modulation modes in air, on softer samples.

Available:
   Uncoated.
   Aluminum backside coating.
   Gold reflective backside coating.

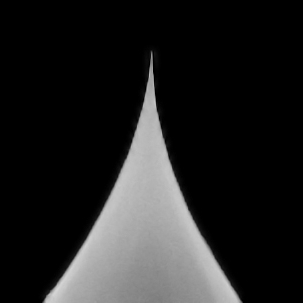

High aspect ratio: Cone angle of < 15 ° over the final 1 μm of the tip.   Minimal variation in spring constant and resonant frequency.

Cantilever Specifications

Parameter Nominal Range
Spring constant (N/m) 2 0.5 - 3.5
Resonant frequency (kHz) 70  45 - 80
Shape Rectangular
Length (µm)  225 223 - 227
Width (µm)  30 29 - 31
Thickness (µm)  2.5 2.0 - 3.0
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025



Tip Specification

Parameter Nominal Range
Radius (nm) 5 < 10
Height (µm) 7 5 - 8
Set back (µm) 7.5 6.5 - 8.5
Shape Conical
Cone Angle (°)  25 15 - 40
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Note: Nominal values for spring constants and resonant frequencies are calculated using well-known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.

Option reflective coatings:

Aluminium: Frontside/Tip - None, Backside/Reflective - 40 nm Al

Gold: Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 50 nm Au
