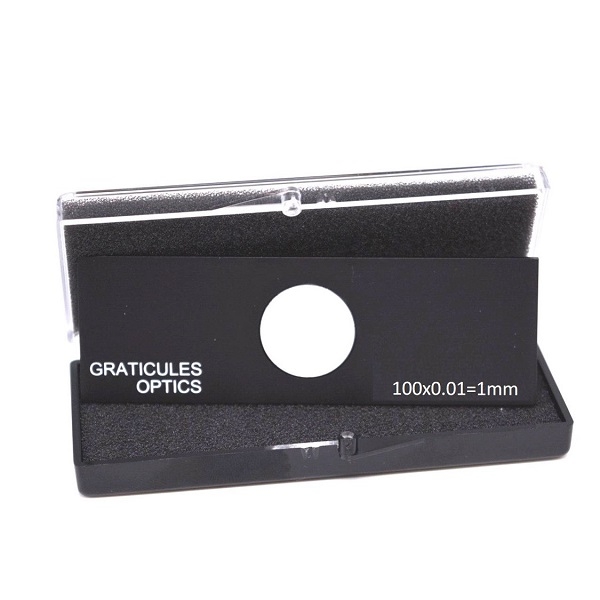

Stage Micrometer Reflected light 100 Separate and Distinct Divisions 10µm per Division
100 separate and distinct divisions
10µm per division
Reflected light illumination
We would recommend this version of the product for anyone using a metallurgical light microscope. Because most metallurgical samples are examined without a glass coverslip, this stage micrometer does not have a coverglass. Hence one also has to use greater care to protect the surface from accidental damage. The calibrated distance is 1.0mm in length.
Tips for extending useful life time:
Cleanliness is the rule at all times. Keep the stage micrometer free of dust through the use of SPI Two-In-One™ OK Easy™ Dusters. And when not in use in the microscope, it should be always in a protected (e.g. "clean" environment) and if it has to be set down on a surface, do not set directly onto a laboratory bench, but put it on a SPI-Wiper™ lint-free cotton wiper.
