PEAK Scale Magnifier with Quick-Change Reticle 7X Model 1975

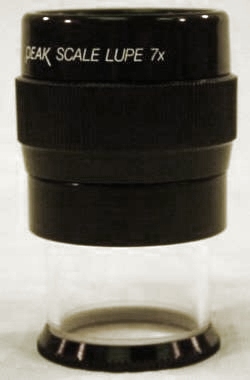

This PEAK 7x Scale Magnifier (PEAK Model 1975) is a precision manufactured optical device with an achromatic lens, adjustable focus, and a 24 mm diameter visual field. It comes with a photo-printed scale and focusing ring. Unique is its combination of high magnification with a wide field of view. The product comes with a good carrying case to protect it against damage.

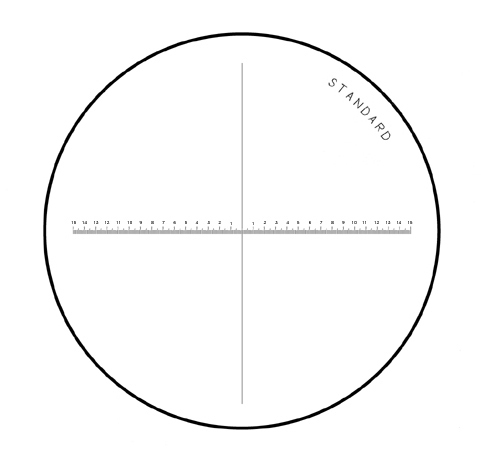

The magnifier come with the "standard" reticle having metric scale markings of 1mm major and 0.1mm minor divisions. The magnifier reticle is however interchangeable with other reticles. Also note that this magnifier can also be ordered with a five reticle set.Specifications:
- Magnification: 7x
- Field of View: 24 mm diameter
- Eye-piece: 18 mm diameter
- Size: 36 mm dia x 57 mm high
- Net Weight: 56 g
