SPARK 150 Pt Conductive AFM Probes - Pk 10

SPARK 150 Pt Conductive AFM Probes -  Pk 10
SPARK 150 Pt Conductive AFM Probes - Pk 10
$602.70
AvailabilityContact for Availability
Item01080-AB

SPARK 150 Pt Conductive AFM Probes

Robust, high-resolution probes for electrical characterization.
Rigorous inspection of every probe means each one performs as you expect.

Pack of 10 conductive AFM probes with platinum coating on both sides, suitable for electrical characterization in AC modes (non-contact/tapping).

40 nm platinum coating with a 5nm titanium adhesion layer on both sides of the probe and a tip radius of less than 30 nm.

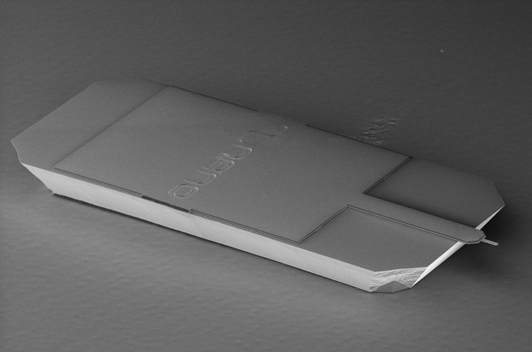

Cantilever Specifications

Parameter Nominal Range
Spring constant (N/m) 18 10 - 26
Resonant frequency (kHz) 150 130 - 170
Shape Rectangular
Length (µm)  225 223 - 227
Width (µm)  30 28 - 32
Thickness (µm)  4.5 4.0 - 5.0
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

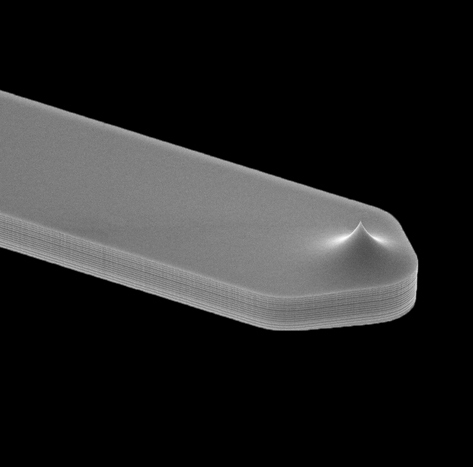

Tip Specification

Parameter Nominal Range
Radius (nm) 5 < 10
Height (µm) 6 5 - 8
Set back (µm) 7.5 6.5 - 8.5
Shape Conical
Cone Angle (°) 25 15 - 40
Material Silicon (n-type, Antimony)
Resistivity (Ωcm) 0.02 0.015 - 0.025

Coatings

Frontside/Tip
    5nm Ti
    40nm Pl

Backside/Reflective
    5nm Ti
    40nm Pt

Note: Nominal values for spring constants and resonant frequencies are calculated using well-known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.
