Graticules S52 Sedgewick Rafter Counting Chamber (Glass Construction)

Graticules S52 Sedgewick Rafter Counting Chamber (Glass Construction)
Graticules S52 Sedgewick Rafter Counting Chamber (Glass Construction)
$300.22
AvailabilityIn Stock
Item01010-AB

Material: Glass
Slide Size: 76mm x 40mm x 2mm
Chamber Size: 50mm long x 20mm wide and 1mm deep
Chamber Volume: 1ml
Grid: 100 x 1mm squares

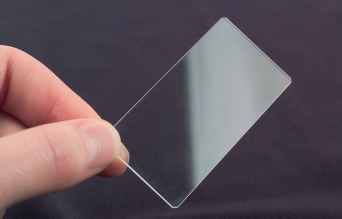

Cover: Glass (60mm x 30mm x 1mm thick)

Package Size: 1

Sedgewick Rafter Counting Cell Slide

The Sedgewick Rafter Counting Cell Slide was designed specifically for the quantitative measurement of the exact number of particles in a precise volume of a fluid. The Sedgewick Rafter counting cells are used widely in water analysis, culture inspection and for any other fluid where particles per unit volume must be determined.

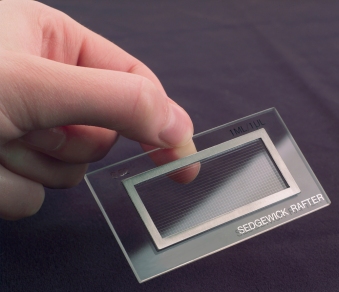

The Sedgewick Rafter chamber is constructed as a flat slide (76mm x 40mm x 2mm) onto which is cemented a 'wall' to form a chamber or cell in the middle. This chamber is 50mm long x 20mm wide and 1mm deep and its base is marked with a grid of 100 x 1mm squares. When filled with liquid and with a cover glass placed over the chamber a 1ml volume of liquid is trapped. When used under a low magnification light microscope, each of the grid squares equates to 1 microliter of liquid.

The cell is available in glass and plastic versions. The glass cell is designed for repeated cleaning and re-use. It is made of high quality optical glass with a chromium surface image and is intended for continued use and whenever using phase contrast. The plastic cell is an economically priced cell for one or possible several time use and for classroom use.

But whatever form of the cell you purchase, the process is the same. Each type has a central cell that is filled with the fluid to be tested and a coverglass limits the volume to precisely 1 ml. The grid subdivides this into microliters (e.g. µl).

Each cell is supplied with one cover glass
