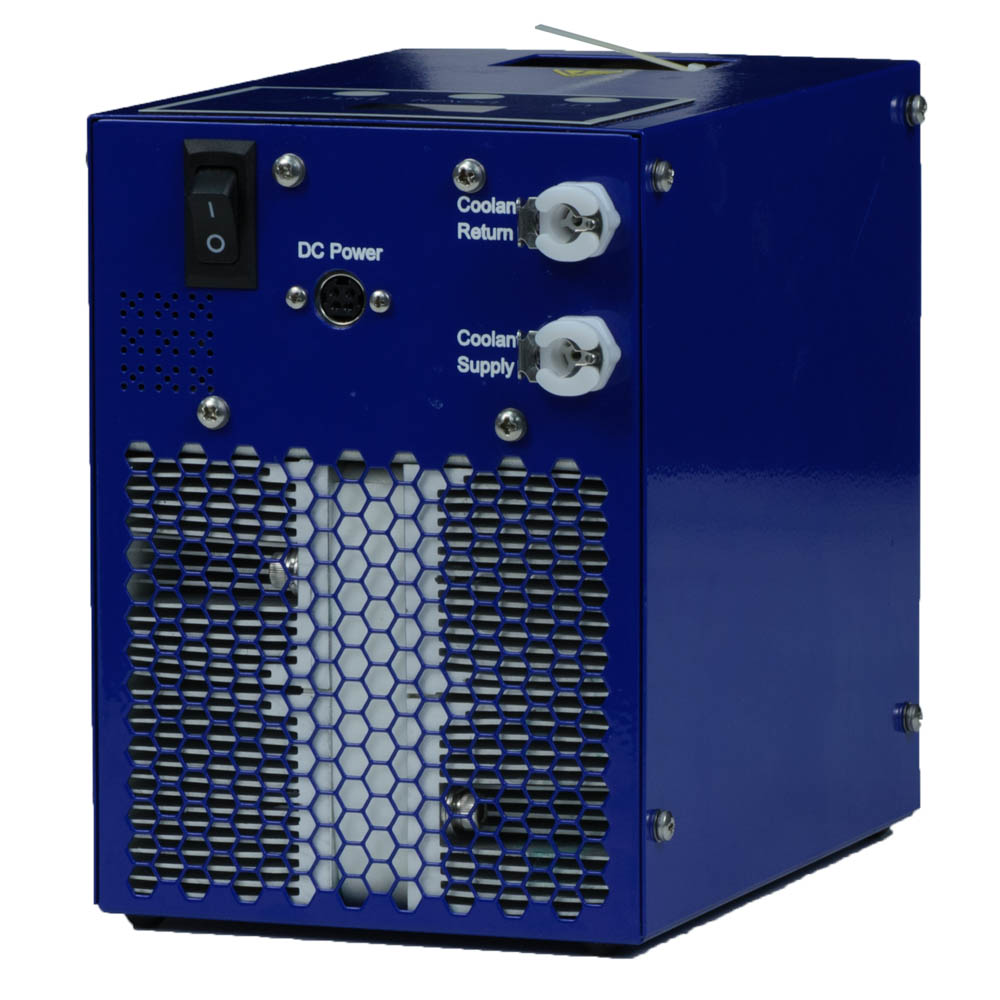

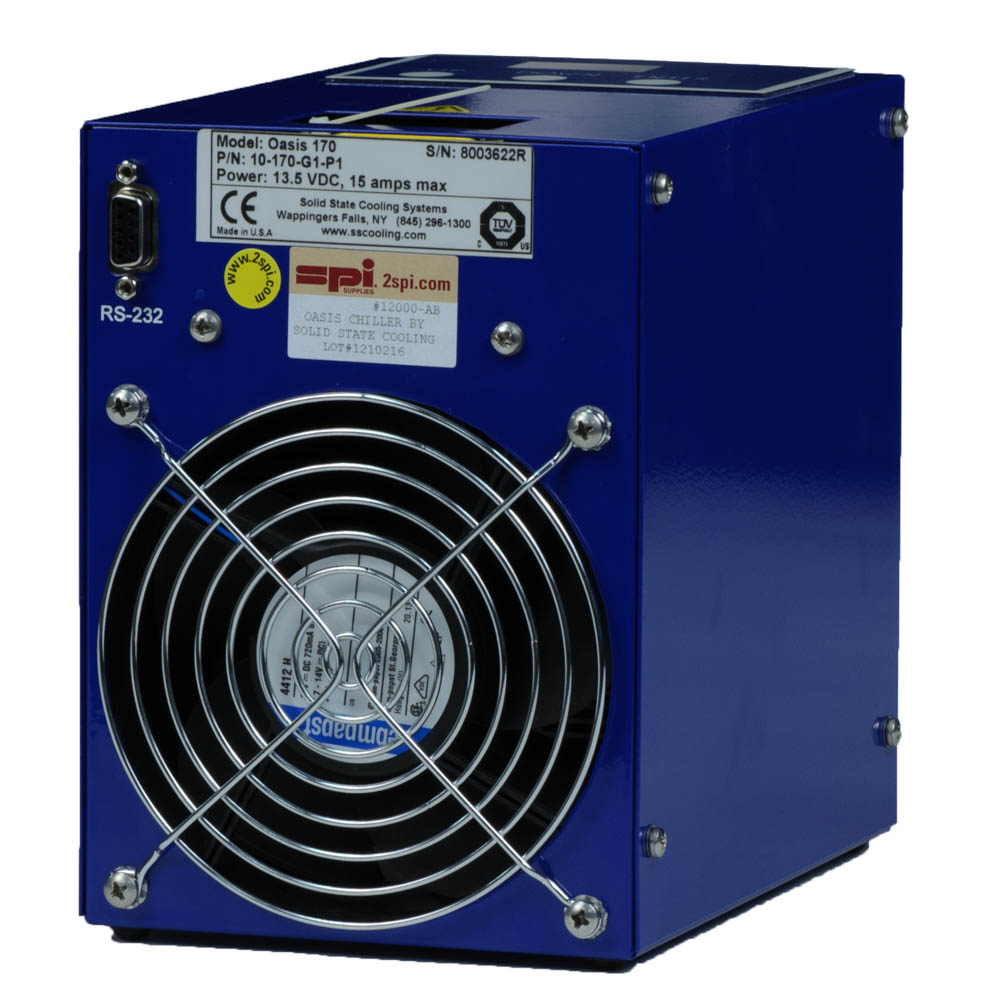

Ultra Compact Chiller, UC170, by Solid State Cooling Systems

Ultra Compact Chiller, UC170, by Solid State Cooling Systems
Ultra Compact Chiller, UC170, by Solid State Cooling Systems
$4,500.00
AvailabilityContact for Availability
Item12000-AB

The Smallest Recirculating Chiller on the Planet!

With a small footprint, this chiller is a good match for use with small wattage systems that require a reliable cooling source such as our Plasma Prep Reactive Ion EtcherPlasma Prep X, and Plasma Prep Jr.. Available with a 160-190 Watt capacity, the UC170 Ultra Compact Chiller,  delivers precise temperature control using ultra-reliable hermoelectric modules with lifetimes exceeding 200,000 hours. The UC170  responds instantly to changes in load, holding to ± 0.1°C, even near ambient. Its universal, variable power supply only provides power when needed, making the unit very energy efficient. As the world’s smallest, air-cooled recirculating chiller, the UC170  fits easily inside your equipment or on your tabletop. And its standard RS232 interface for automatic temperature control makes Oasis simple to use.

  • Low-light CCD cameras
  • Diode lasers
  • OEM medical equipment
  • 160 W to 190 W
  • Laboratory equipment
  • Microtiter plate temperature control
  • Point-of-use temperature control

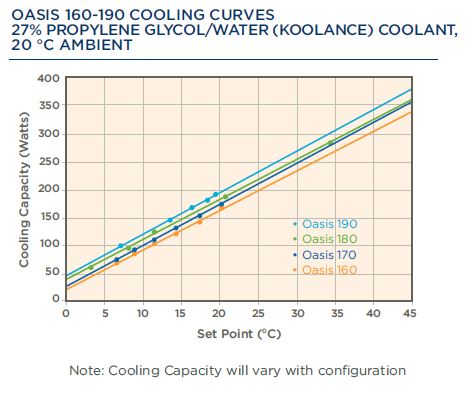

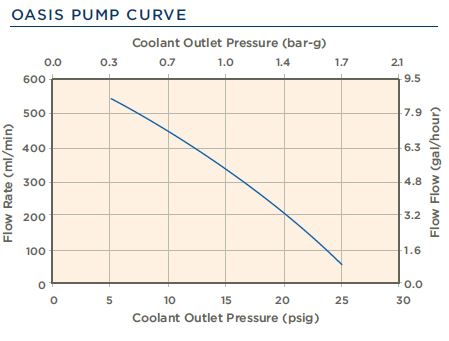

Oasis 160 190 Chart Oasis Coolant Chart



SPECIFICATIONS
Operating Range 2 °C to 45 °C (160W / 180W models)
10 °C to 45 °C (170W / 190W models)
Ambient Temperature 10 °C to 40 °C non-condensing
Repeatability ± 0.1 °C (even near ambient)
Cooling Capacity 160W to 190W @ 20 °C (20 °C ambient)
Noise (at 1 meter) <63 dBA
Coolant/Process Fluid Koolance (27% propylene glycol/water
mix) or 27-50% ethylene glycol/water mix
Process Fluid Fittings 1/8” female CPC with shut-off valve
Pump Magnetically-coupled gear pump with brushless DC motor
Tank Volume 75 ml with level sensor
(optional sealable cap)
Wetted Materials Al and polymers, or Cu and polymers
Size (L x W x H) 7.5” x 5” x 7” (19 x 13 x 18 cm)
Weight 8 lbs (3.5 kg)
Power Input Universal: 100 - 240 VAC, 50/60 Hz, 2.8A max
Power Consumption Less than 200 Watts
Operating Voltage 13.5 VDC, 15 amps max (universal input,
laptop style power supply included)
Communications Keypad or RS232 interface
Alarms Temperature, fluid level, component or
system failure (display, RS232 and dry contact)
Standards CE, TUV listed to CSA/UL 61010-1
Warranty 1 year
