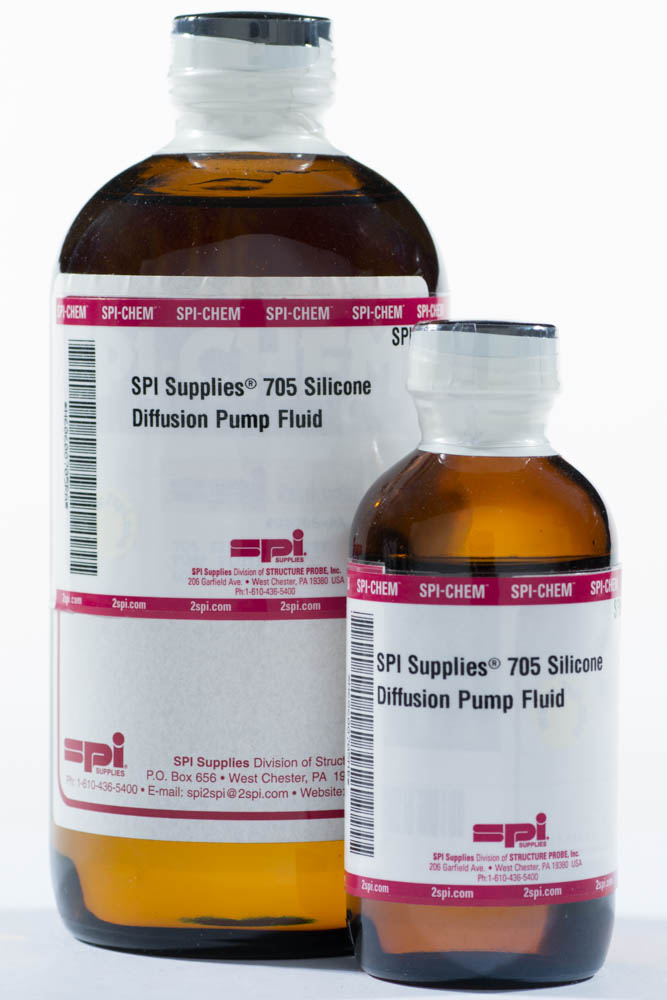

SPI Supplies 705 Silicone Diffusion Pump Fluid, Pentaphenyl Trimethyl Trisiloxane

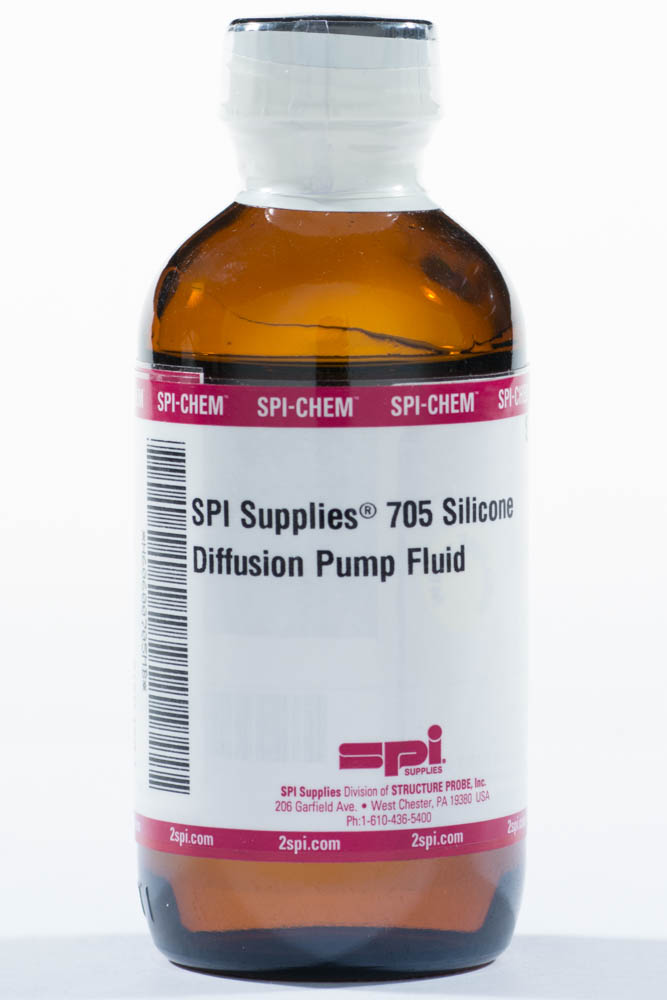

SPI Supplies 705 Silicone Diffusion Pump Fluid, Pentaphenyl Trimethyl Trisiloxane, 100cc
Size 100 cc
Item00705-MB
AvailabilityContact for Availability
$46.81

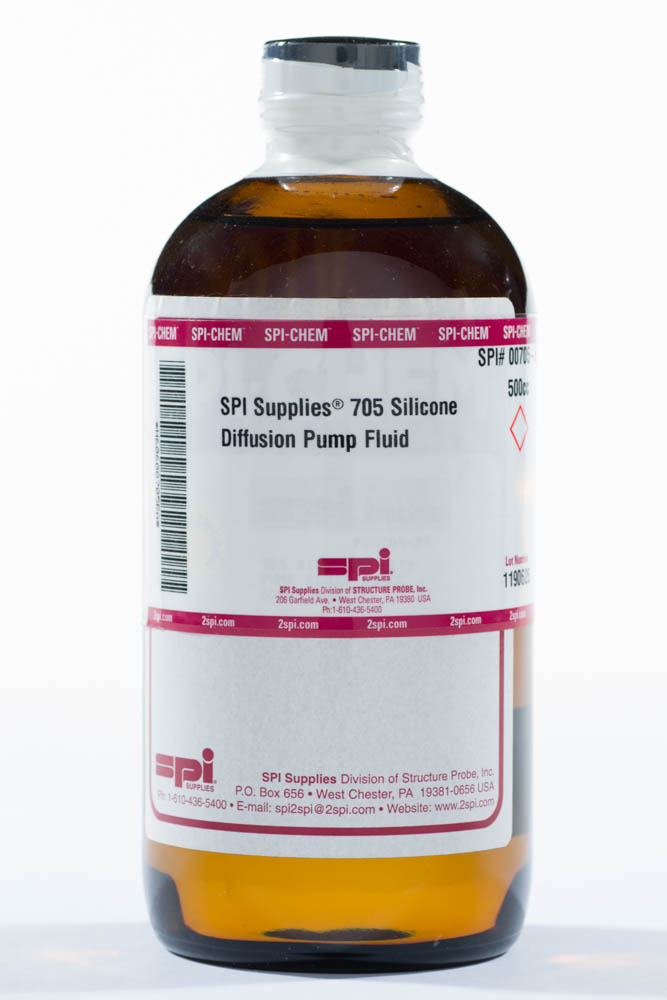

SPI Supplies 705 Silicone Diffusion Pump Fluid, Pentaphenyl Trimethyl Trisiloxane, 500cc
Size 500 cc
Item00705-RA
AvailabilityContact for Availability
$167.05

The SPI-704 and SPI-705 silicone diffusion pump fluids are direct replacements for the Dow Corning™ 704 and 705 fluids discontinued in 2011. The SPI-704 and SPI-705 have properties that are almost identical to the Dow Corning™ oils. (see specifications below). The SPI-704 and SPI-705 are man-made silicone-based fluids specifically tetamethyl tetraphenyl trisiloxane (704) and pentaphenyl trimethyl trisiloxane (705).

Durability is the biggest advantage in using silicone-based fluids. Silicone-based fluids have excellent chemical resistance, oxidation resistance and radiation resistance. These characteristics allow for longer fluid life, cleaner vacuum and better pump down times. Another advantage to using silicone-based fluids is that one can achieve a higher ultimate vacuum pressure in the range of 10-8 to 10-10 torr. Silicone-based fluids are also safer to use than hydrocarbon fluids. The threat of fire or explosion is minimized when using silicone-based fluids. Silicone-based fluids, because they are inert, do not react with metal parts, elastomeric seals, or gases such as hydrogen and carbon monoxide that are commonly found in high vacuum systems.

The single biggest disadvantage to using silicone-based fluids is their cost. They tend to be higher in cost than hydrocarbon fluids. Their price is dependent on the amount of phenyl in each type and each type will have varying amounts of phenyl. Please note that the higher the amount of phenyl, the higher the cost of the pump fluid. To achieve the maximum efficiency from your pump fluid we suggest a vigorous routine maintenance program for your pump fluids. This routine maintenance will extend the life of your pump fluid while at the same time keep your costs lower.

SPI Supplies 705 Silicone Diffusion Pump Fluid Dow Corning 705 Silicone Diffusion Pump Fluid
Molecular Name Pentaphenyl Trimethyl Trisiloxane Pentaphenyl Trimethyl Trisiloxane
Viscosity (25 degree C) mm2/s
165-185
175
Specific Gravity @ 25C
1.09(g/cc)
1.09 (g/cc)
Flash Point, Open Cup,degree C
243
243
Ultimate vapor pressure, PA
Untrapped
Trapped
10-9 to 10-10
10-9 to 10-11
10-9 to 10-10
to 10-11
Density  g/cm3
1.093
NA
Boiling Point @ .06 torr
242C
245C
Surface tension (dynes/cm)
36.5
36.5
Color
Clear to Yellow
Clear to yellow
Melting Point
-14 C
NA
Molecular Weight
546
546
