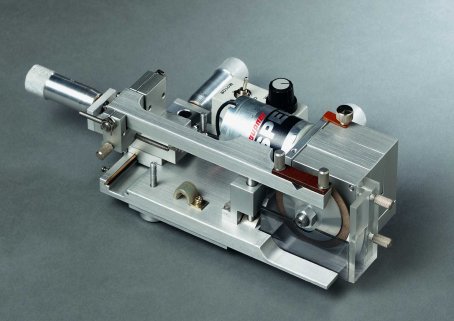

Microsaw Model MS 3 110 volt
Microsaw Model MS 3 110 volt
Click to enlarge

Microsaw Model MS 3 110 volt

Item Number 17016-AB
Availability Contact for Availability
Price  $3,538.08

Microsaw™ Model MS 3 110 Volts:

The Microsaw™ is a small, versatile diamond wheel saw, to be mounted under a standard laboratory microscope. The precision offered by such an optical alignment makes Microsaw ideal for cutting and sectioning required during the TEM specimen preparation.

A circular diamond saw for precise cutting under stereomicroscope

Microsaw™ can be used under a standard stereomicroscope which allows for precise positioning of specimens during cutting.

General:

The compact structure and easy operation of the Microsaw™ allows the user to reproducibly and rapidly cut almost any solid material prior to thinning for TEM. Thin pieces of ceramic materials, semiconductors, and hard metals can be further sectioned with 0.01 millimeter accuracy. Adjustment of the specimen position, arm contact point, arm tension and the downstop control mechanism is possible. Two adjustment screws at the bottom of the instrument allow positioning of the stand, providing a method for leveling the Microsaw™ underneath the stereooptical microscope.

Operation:

The Model MS 3 is driven by an electric motor through a helical transmission. The 12 V DC is provided by the power supply submit. The speed at which the wheel turns is continuously adjustable. Adjustment of the specimen position, arm contact point, arm tension and the downstop control mechanism is possible. Two adjustment screws at the bottom of the instruments allow positioning of the stand, providing a method for leveling the Microsaw™ underneath the stereooptical microscope.

Application:

The system can be applied widely in the fields of materials research, geology, semiconductors and optical industry for such as multilayer systems, semiconductors, high Tc superconductors, diamond, composite materials, metals, ceramics, glasses, rocks and minerals.

Specifications:

    • Maximum sample size: approx. 10 x 10 mm
    • Minimum slice thickness: approx. 100 µm
    • Input voltage: 100–240 V / 50–60 Hz
    • Output power: 12V / 24 V
    • Power consumption: max. 5 W
    • Dimensions: 250 mm x 150 mm x 80 mm
    • Diamond wheel:
Type - AC32 63/50
Dimensions - 50 mm dia. 0.15 mm thick
  • Microsaw™ device comes standard with on (1) diamond wheel.
