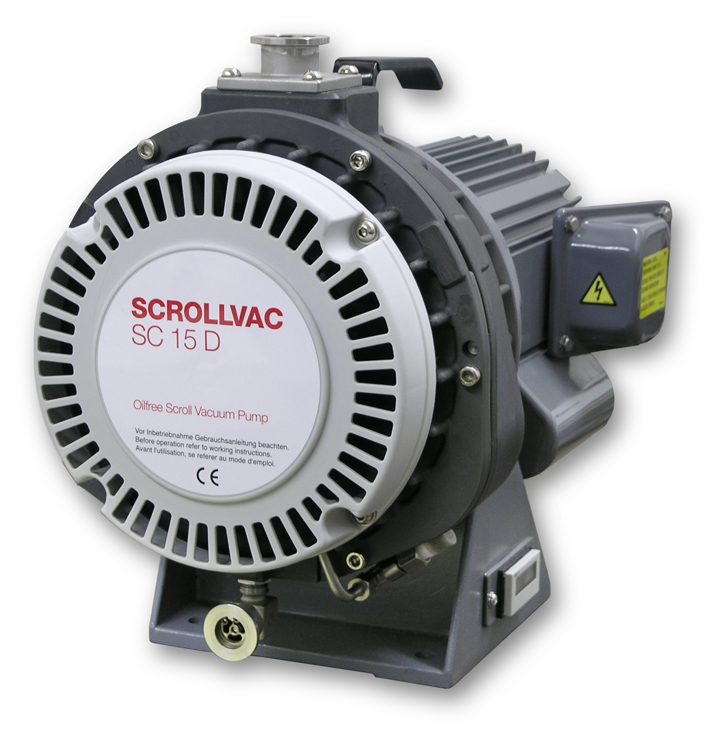

Oerlikon Leybold Scroll Pump 110-230 Volt AC, 50/60 Hz Single Phase
Oerlikon Leybold Scroll Pump 110-230 Volt AC, 50/60 Hz Single Phase
Click to enlarge

Oerlikon Leybold Scroll Pump 110-230 Volt AC, 50/60 Hz Single Phase

Item Number 10409-AB
Availability In Stock
Price  $8,735.70

Oerlikon Leybold Scroll Pump 110-230 Volt AC, 50/60 Hz Single Phase

Many labs today are moving towards an oil free environment. This move has a number of strong supporters such as preventing backstreaming of oil into equipment, odors from the pump oil and well as the oil change and disposal of used oil itself. While there will always be the need for two stage mechanical pumps, some areas see an advantage of using a Scroll Pump.

The dry compressing of a Leybold SCROLLVAC SC-D pump operates on the principle of Archimedes spirals engaging each other. The vacuum is then created by reduction in volume of the trapped environment and compression of gases to a gas outlet.. SCROLLVAC pumps operate absolutely oil-free with a high effective pumping speed.

Of course, two stage mechanical pumps are less expensive and generally quieter in operation, but for those seeking an oil free lab, these pumps may be considered.

Technical Data

Nominal pumping speed
50 Hz m3/h (cfm) 15.0 (8.8)
60 Hz m3/h (cfm) 18.0 (10.6)

Pumping speed
50 Hz m3/h (cfm) 13.0 (7.7)
60 Hz m3/h (cfm) 15.5 (9.1)
Attainable ultimate pressure mbar (Torr) ≤ 0.016 (≤ 0.012)

Connections
Inlet DN 25
Exhaust DN 16
Noise level at 1 m, free field measurement dB(A) ≤ 58
Dimensions (W x H x D) mm (in.) 400 x 252 x 336
(15.75 x 9.92 x 13.23)
Weight Single-phase motor kg (lbs) Three-phase motor kg (lbs) 25 (55.2)
23 (50.8)

The SC 15D is suggested for use with the SPI Supplies Vacu Prep II. It can also be used on the SPI Supplies Sputter/Carbon Coater Systems. It should not be used on the Osmium Coater.
