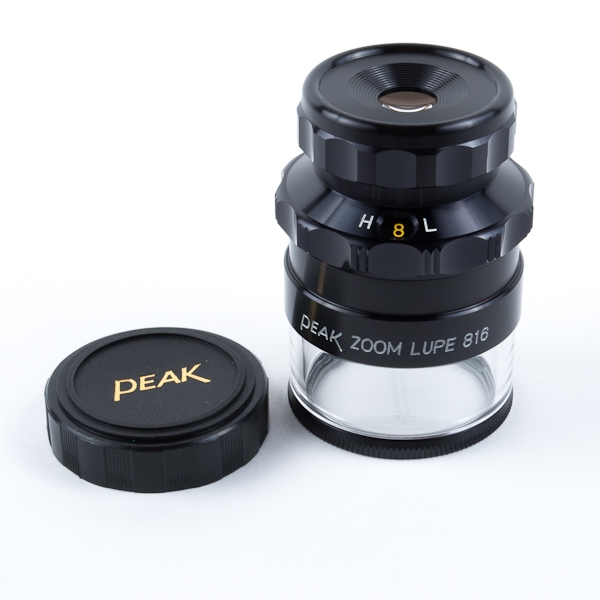

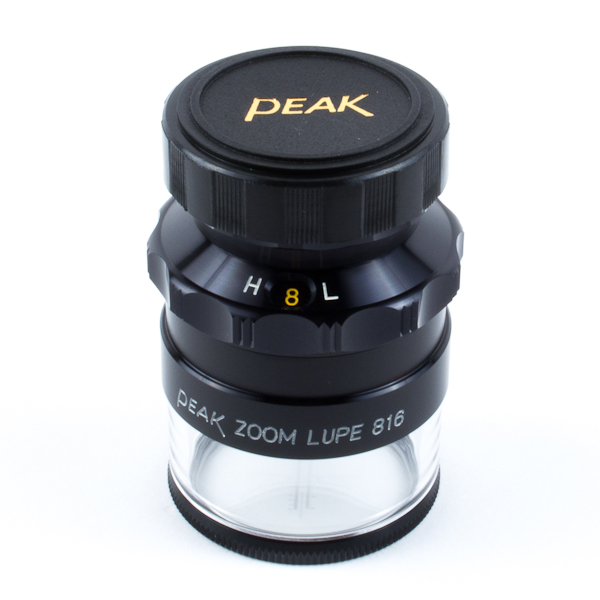

PEAK Zoom Lupe 816, 8x to 16x
PEAK Zoom Lupe 816, 8x to 16x
Click to enlarge

PEAK Zoom Lupe 816, 8x to 16x

Item Number 09737-AB
Availability In Stock
Price  $335.77


  • Magnification: 8x to 16x, continuous
  • Diopter adjust ring: +2.5D to -5D
  • Field of view: 20 mm to 10 mm diameter
  • Size: 45 mm diameter x 65 mm high
  • Minimum scale division: 0.1 mm, 0.005"
  • Net weight:76g

The PEAK Zoom Loupe is really a zoom measuring magnifier, all built into one precision manufactured optical instrument. It permits the continuous change in magnification when zooming, all the time being able to measure using the built-in measuring scale. This compact product actually consists of eight difference lenses in 6 groups for the continuous zooming from 8x to 16x. The loupe is designed such that there is always sufficient illumination with the least optical aberration.


The lenses are all glass. The black outer body is precision machined aluminum, black anodized, and the movement of the zoom is very smooth. The built in click stops make for a more convenient selection of magnifications, the stops corresponding to 8x, 10x, 12x, 14x and 16x.
